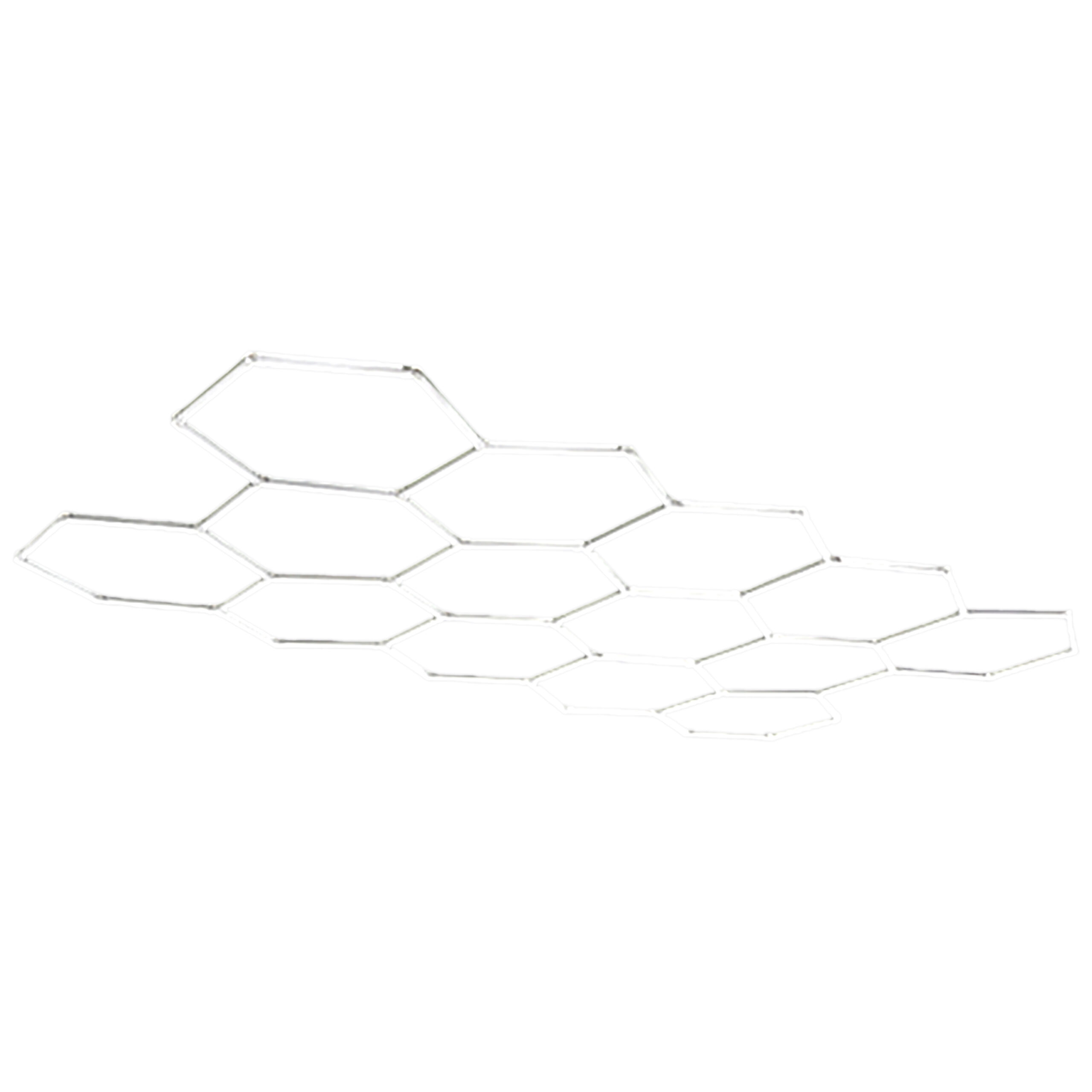

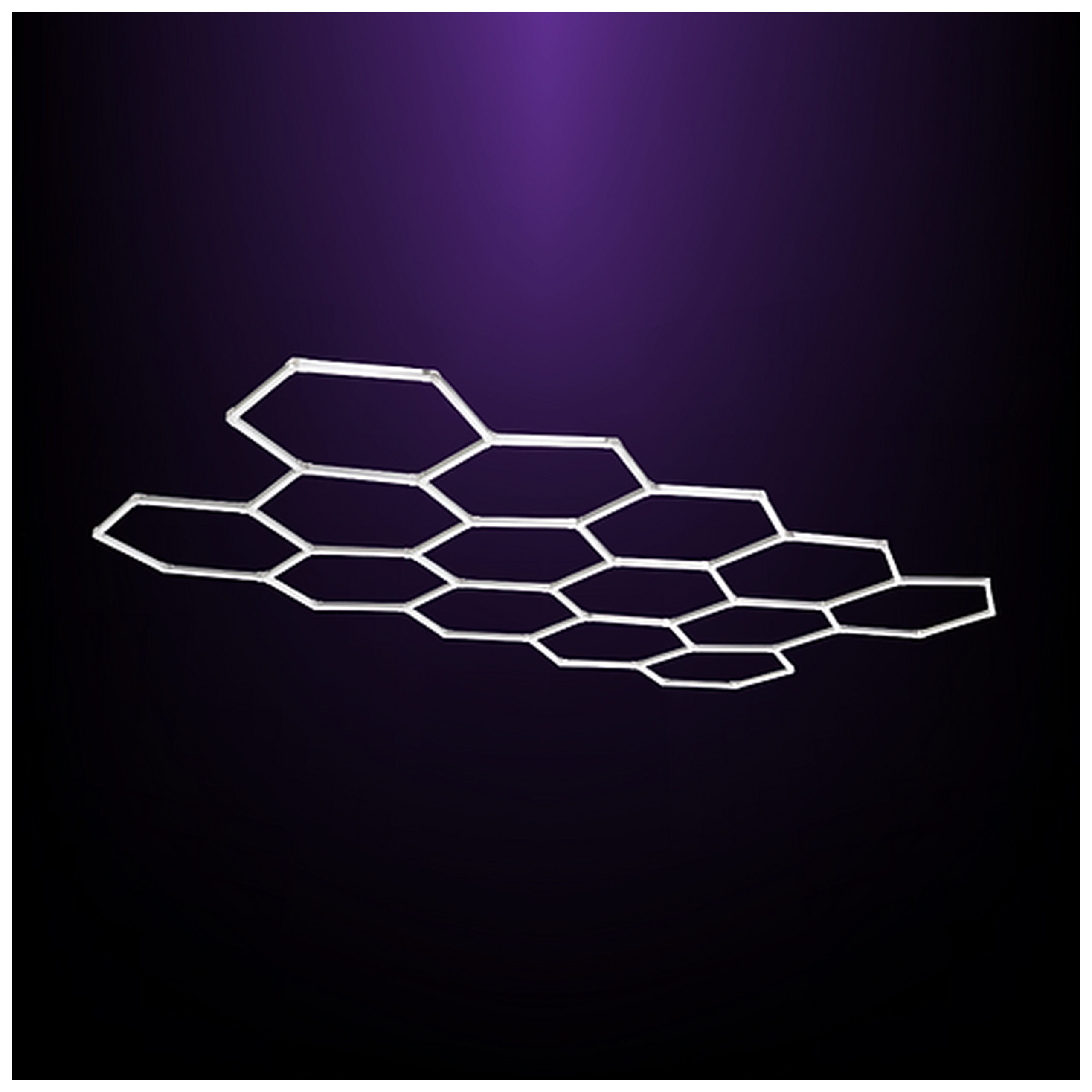

LED Light 14 Grid without Frame

This product is currently not available.

Discover the many possibilities of Hexagon LED panels and Hexagon ceiling lighting from LED-IT BEE, which transform any studio into a work of lighting art. The LED Hexagon Lights not only offer you countless design options, they are also energy-efficient and easy to install.

This LED Light Grid without Frame is the improved version V2.

Universal applicability:

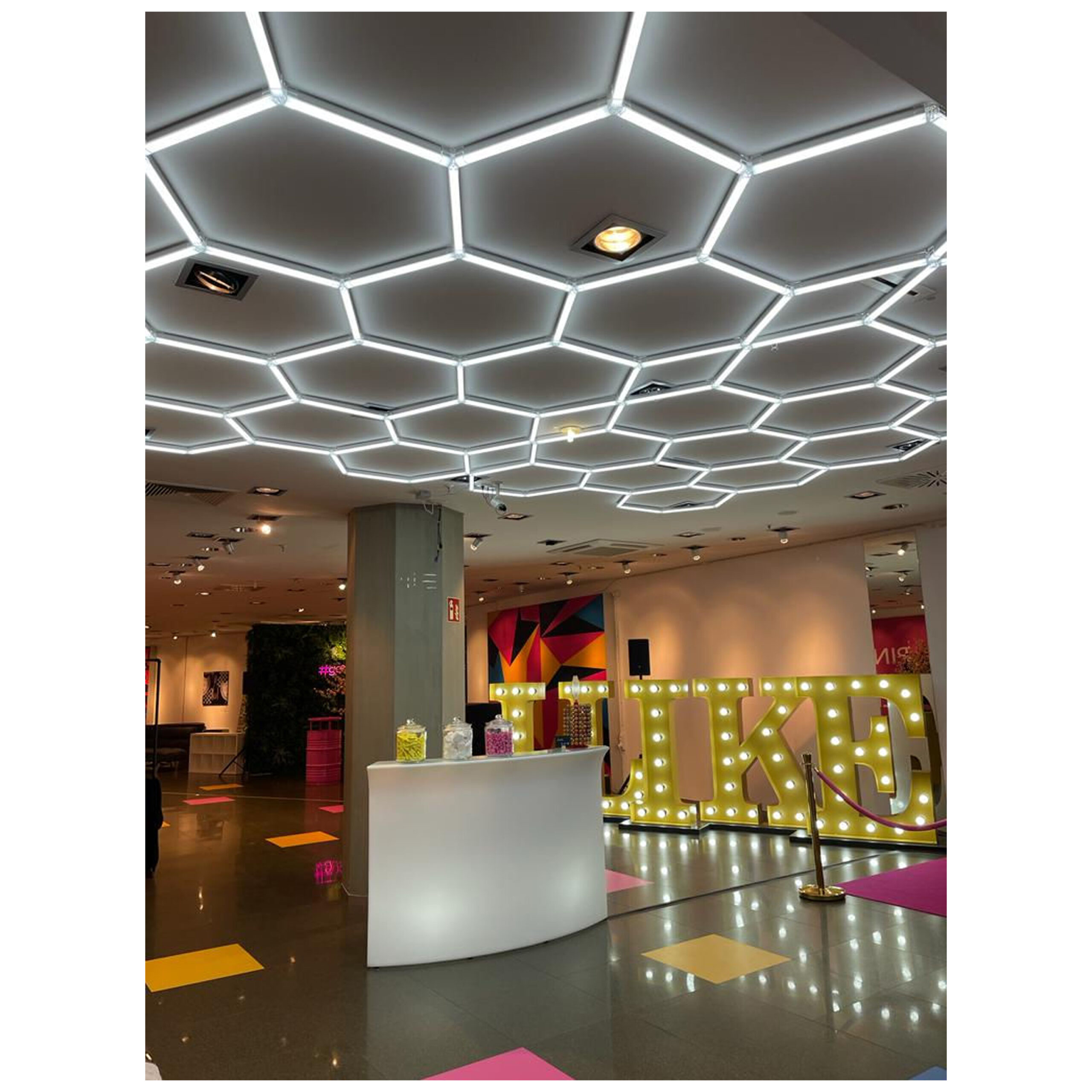

Whether you want to equip tattoo studios, where precise and clear light is essential, offices with a pleasant and productive atmosphere or technical workshops – LED Light 14 Grid without Frame V2 adapts to your needs. Thanks to the modular system, V2 can be used and customised in almost any environment, allowing you to create the perfect lighting solution for your specific requirements.

Your benefits:

  • Efficiency: V2 is designed for maximum energy efficiency, which not only protects the environment but also reduces your operating costs. Compared to V1, V2 is around 10% more efficient, making a noticeable difference in energy utilisation.
  • Extended system capacity: The ability to create systems up to three times larger than V1 opens up new dimensions in your lighting design and installation.
  • Light quality: The increase in colour temperature to 7200K provides a brighter and more natural light.
  • Customisability: The extended modular system allows you to configure individual and extensive lighting solutions with ease.
  • Durability and safety: A more robust design and the 3-pin connection guarantee a longer service life and higher safety standards.

Technical data:

  • Total weight of the system: 9.547 kg
  • Dimension: 235 x 417 cm
  • Light efficiency of the overall system: 111.2 lm/W
  • Total connected load: 586.5 W
  • Total luminous flux of the system: 65,202 lm

Further technical specifications:

  • Rated voltage: 220 – 240 V
  • Rated frequency: 50/60 Hz
  • Colour rendering index (CRI): 80
  • Colour temperature: 7200 K
  • LED service life: 30,000 hours
  • Mounting types: Wall, ceiling and pendant mounting
  • Connection type: Quick connection system
  • Protection class: IP20
  • Protection class: SKI
  • Photobiological safety class: RG 0 – no risk
  • Luminaire body: Polycarbonate upper profile section with PC end caps and aluminium base
  • Beam angle: 120°
  • Dimmability: No

Maximum number of luminaires per circuit:

  • For LED-HEX-44-V2 Struts: 120
  • For LED-HEX-60-V2 struts: 100
  • For LED-HEX-117-V2 struts: 60

Additional information on power:

  • A maximum combined power of 1300W may be connected to one circuit

Collection:

Material:

Weight: 695 g

SKU: LEDBEE01 Categories: , ,
